Polarized retro-reflective photoelectric sensor, autocollimation optics with visible red light
Particularly suited for highly transparent bottles (PET and glass)
Small and compact construction with robust plastic housing, protection class IP 67 for industrial application
Push-pull output with light/dark switching via teach-in button
High switching frequency for detection of fast events
Easy adjustment via lockable teach button or teach input

Accessories:

Operating principle: Reflection principle

Application: Detection of highly transparent bottles

Operating range: 0 ... 3 m

Operating range limit: 0 ... 3.6 m

Light source: LED, Red

Switching frequency: 1.000 Hz

Supply voltage: 10 ... 30 V, DC

Number of teach inputs:

Number of digital switching outputs: 1

Switching output 1

Switching element: Transistor, Push-pull

Switching principle: Light/dark reversible

Connection 1

Type of connection: Connector

Thread size: M8

Material: Metal

No. of pins: 4

Dimension: 11 mm x 32 mm x 17 mm

Housing material plastic, PC-ABS

Lens cover material: Plastic (PMMA)

Operational controls: Teach button

Ambient temperature, operation: -25 ... 55 °C

Protection classIP 67

Special design: Autocollimation

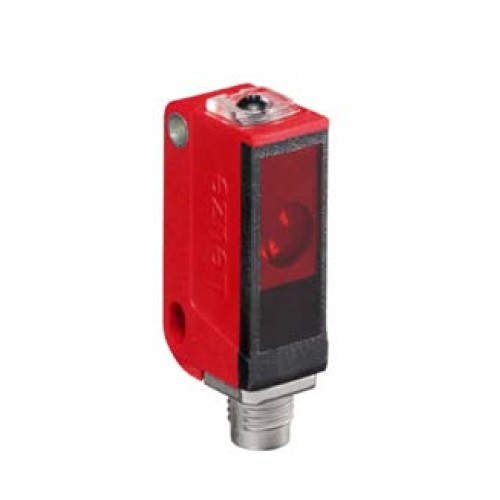

Leuze Polarized Retro-reflective Photo Sensor
