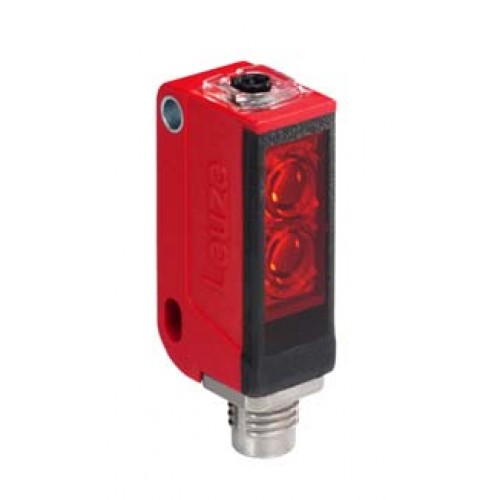

Through beam photoelectric sensor with visible red light
High performance reserve
Small and compact construction with robust plastic housing, protection class IP 67 for industrial application
Fast alignment through brightVision
Push-pull switching outputs
High switching frequency for detection of fast events
Warning output for increased availability

Accessories:

(available separately)

Operating principle: One-way principle

Device type: Receiver

Timing/Switching frequency: 1.000 Hz

Supply voltage: 10 ... 30 V, DC

Thread size: M8

Material: Metal

No. of pins: 4 Piece(s)

Dimension: 11 mm x 32 mm x 17 mm

Housing materialplastic: PC-ABS

Lens cover material: Plastic (PMMA)

Net weight: 10 g

Ambient temperature, operation: -25 ... 55 °C

Outputs

Number of digital switching outputs: 2 Piece(s)

Switching output 1

Switching element: Transistor, Push-pull

Switching principle: Light switching (PNP)/dark switching (NPN)

Switching output 2

Switching element: Transistor, Push-pull

Switching principle: Dark switching (PNP)/light switching (NPN)

Leuze Throughbeam Photoelectric Sensor Receiver
