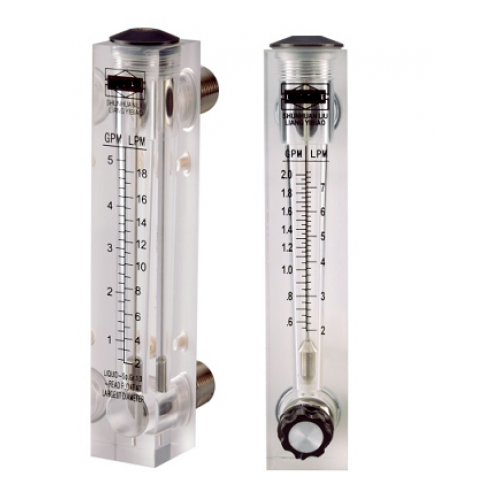

LZM series Panel Mount Tube Type Flow Meter are variable area flow meters built by acrylic body and stainless steel float .
The dual scale on GPM and LPM with clear measurement body makes it simply direct and easy reading .
Features and benefits:
- Durable, high polished one piece acrylic body
- Variable area of flow meters range from 0.1- 150GPM
- Dual scale on GPM and LPM
- Onsite direct and easy reading
- Adjustable valve available for easy assemble
| Model | Measure Range | Adapter | Accuracy | Size(mm) | ||||||||
| GPM | LPM | A | B | C | D | E | F | G | H | |||
| 1-10 | 5-35 | |||||||||||
| 2-15 | 10-60 | |||||||||||
| 2-20 | 10-70 | |||||||||||
| LZM-25 | 1" M | ±4% | 232 | 44 | 225 | 45 | 33 | 100 | 160.5 | 36 | ||
| 5-30 | 20-110 | |||||||||||
| 15-35 | 50-130 | |||||||||||
| 5-40 | 10-150 | |||||||||||
LZM-25 Panel Mount Flow Meter
- Product Code: LZM-25
