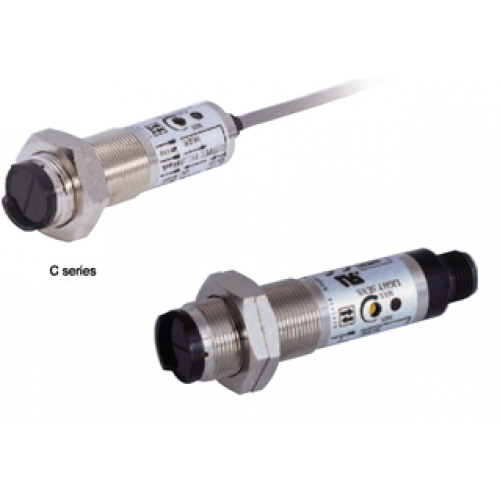

Optex C Series M18mm Cylindrical Photoerectric Sensor

Through-beam type  CTD-1500 : 15m
Retro-reflection type
CRD-300 : 0.05-3m
Retro-reflection type (with built-in polarzing filter)
CTDF-100 : 0.05-1m
Diffused reflection type
CDD-11: 11m
Diffused reflection type (long range detection)
CDD-40 : 40cm
Connector versions are available for NPN / PNP


We can supply most common and widely-applied photoelectric sensor in Malaysia. From a standard through-beam sensor to a unique right-angle, background suppression diffuse sensor.

- Optex sensor comes with durable and tough metallic body suitable for some vibration application.
Full injection of epoxy filled into the metal-armed sensor body for vibration resistance purpose.
- Much superior to plastic bodies in terms of durability and resistance to chemicals, oils, and environmental vibrations. The screw thread is easy for installation and suit for almost all industrial engineering project.
- Sense mirror-like or shiny surfaces with CRDF retro-reflection technology with built-in polarizing filter.

Photoelectric Sensor Type Detecting Distance Type Output Model
Through-beam type [15m]
CTD-1500
15m Direct Coding NPN CTD-1500N
PNP CTD-1500P
Plugin Connector NPN CTD-1500CN
PNP CTD-1500CP
Retro-reflection type [3m]
CRD-300
3m Direct Coding NPN CRD-300N
PNP CRD-300P
Plugin Connector NPN CRD-300CN
PNP CRD-300CP
Retro-reflection type [1m]
(with built-in polarzing filter)
CTDF- 100
1m Direct Coding NPN CRDF-100N
PNP CRDF-100P
Plugin Connector NPN CRDF-100CN
PNP CRDF-100CP
Retro-reflection type [11cm]
CDD-11
11cm Direct Coding NPN COD-11N
PNP CDD-11P
Plugin Connector NPN CDD-11CN
PNP CDD-11CP
Diffused reflection type [40cm]
(long range detection)
CDD-40
40cm Direct Coding NPN CDD-40N
PNP CDD-40P
Plugin Connector NPN CDD-40CN
PNP  CDD-40CP



Specifications


Model Through-beam Retro-reflection Retro-reflection w / Polarizing filter Diffused reflection 11cm Diffused reflection 40cm
Cable type NPN/PNP CTD-1500N / 1500P CRD-300N / 300P CRDF-100N/100P CDD-11N/ 11P CDD-40N / 40P
M8 connector type NPN/PNP CTD-1500CN / 1500CP CRD-300CN / 300CP CRDF-100CN/100CP 110D-11CN / 11CP CDD-40CN / 40CP
Sensing range 15 m 3m 1m 11 cm 40 cm
Response time 1.5msec Max
Operation Mode Light ON/Dark ON switchover
Hysteresis NIL 10% Max
Light source Infrared Red Infrared
Control output NPN or PNP Open collector, 100mA Max / 30V DC
Supply voltage 10 to 30 V DC including 10% of ripple
Conformity JIS/C4525, CE, UL
Power consumption 40mA Max 30mA Max 30 mA
Ambient Temp/Humid -25 to 55 °C / 35 to 85% RH
Sensitivity adjustment Single turn potentiometer
Protection category IEC 144 IP66
Shock resistance 50G(500m/S2),X-Y-Z axis 3 times
Housing Material BSBM + Ni(Case), PC(Lens)



Optex M18 Cylindrical Photoerectric Sensor

  • Brand: Optex
  • Product Code: Optex C Series Photo Sensor
